Dual Stepper Motor HAT for Raspberry Pi - Cover Expand

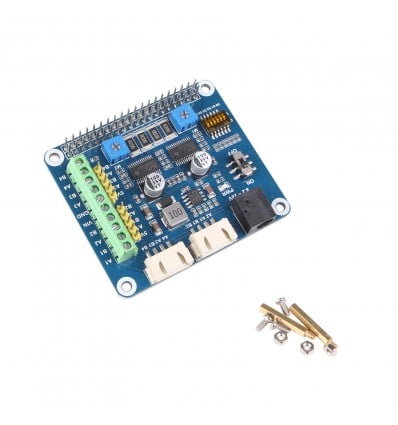

Dual Stepper Motor HAT for Raspberry Pi

Waveshare Waveshare

9RPIHSTEPMOT

New

The Dual Stepper Motor HAT is made for Raspberry Pi, to make driving steppers as easy as putting possible for Raspberry Pi Makers.

More details

3 Items

Warning: Last items in stock!

R 279.95

tax incl.

Spend R 1,000.00 more and get Free Shipping!

Free shipping over R1000 only for standard courier and within South Africa

Stepper motors are fantastic tools for Makers of all kinds, and are an excellent example of what can happen when Electronics meets Mechanics. However, steppers can be tough to drive without equipment like stepper motor drivers, which is why the Dual Stepper Motor HAT for Raspberry Pi is such a great little expansion board. Featuring dual-driving capabilities for driving two Stepper Motors simultaneously, as well as a pin layout that can easily plug into the top of most Raspberry Pi Boards, this board integrates your stepper motors into your project in one of the easiest ways possible, leaving you with more time and energy to focus on the parts of the project that matter most to you.

Another fine feature of the Raspberry Pi Stepper Motor HAT is that it also features an onboard MP1584 5V Regulator built directly into the circuit, so that the power supply of the HAT can also power the Raspberry Pi that it is plugged into. This reduces the amount of necessary power cables by half, which not only ensures that both the board and the HAT will safely turn on and off together, but also helps with cable management and aesthetics for Makers who want to use this HAT in an open-display kind of environment.



Dual Stepper Motor HAT for Raspberry Pi  -  Technical Specifications:

  • Motor Driver IC

– DRV8825

  • Motor Drive Voltage

– 8.2V to 28V

  • Motor Drive Current

– 2.5A Max (Adjustable via Potentiometer)

  • Logic Voltage

– 3.3V DC

  • Microstepping Modes

– 6 Modes Configurable with DIP Switches:

– Full-Step | Half-Step | 1/4-Step

– 1/8-Step | 1/16-Step | 1/32-Step

  • Onboard Protection Features

– Overcurrent (OCP) / Thermal Shutdown (TSD)

– Thermal Shutdown (TSD)

– VM Undervoltage Lockout (UVLO)

  • Integrated Voltage Regulator

– MP1584 5V Regulator to Power Raspberry Pi

  • Raspberry Pi Compatibility

Raspberry Pi 4B | 3B+ | 3B | 2B

– Raspberry Pi Zero W | Zero | Zero WH

– Raspberry Pi Boards with 40 GPIO Headers

  • Weight

– 33g

  • Dimensions

– 56 x 65mm



Typical Applications for Dual Stepper Motor HAT for Raspberry Pi:

The Dual Stepper Motor HAT for Raspberry Pi is an excellent investment if you like to build projects involving both electronics and mechanics, as it offers one of the easiest ways to drive simultaneous Stepper Motors with almost no previous knowledge about driving motors necessary. Simply plug these Pi HATs into Raspberry Pi boards and install the libraries to translate Pi-Language into Stepper-Language, and then start driving those stepper motors – with support for different types of steppers and wiring interfaces too!



Additional Resources:



9RPIHSTEPMOT - DRV8825 DSheet

9RPIHSTEPMOT - DRV8825 Datasheet

Download (1.17M)
